The Revelation Rack – Wall Mount Shelf

$89.99 CAD

Heavy Duty Wall-Mount Garage Organizer with Steel Shelf

Columbia Kootenay Edition

Plus FREE Bonus Gear valued at $24.00 – a limited time offer!

Full details and technical specs below.

SKU: WR-102 Category:

Heavy Duty Wall-Mounted Tool Organizer with Shelf – Columbia Kootenay Edition.

The Revelation Rack wall-mounted garage organizer is your ultimate weapon against clutter chaos.

RACK-ON™ products are simply better than other competitors which may look similar.

With adjustable hooks and a sturdy shelf that slide easily along the rails, you can conquer clutter your way. Hang up axes, rakes, snow shovels, extension cords, brooms, mops, ski and sled helmets—even all your Bigfoot expedition gear. Wherever the wild mess hides, this rack brings order to the lair.

  • Includes (3) Rugged Steel Mounting Plates – Total Rack Length: 4 ft.
    Each plate measures 16” x 4” (406 x 98.5 mm) and features oversized bullet-slot holes that align perfectly with standard 16” studs. No studs? No problem. Heavy-duty wall anchors are included for secure mounting anywhere. Built to handle serious weight—165 lbs (75 kg) per plate—battle-tested for the toughest loads.
  • Includes (1) Rugged Steel Wire Shelf
    Easily position the shelf anywhere along the rails for maximum flexibility. Measuring 16” x 11” (406 x 279 mm), it’s the perfect perch for bulky pet food bins, garden soil bags, road salt, a pair of full-face helmets—or even a banker box packed with blurry Sasquatch sightings. Shelf Weight Capacity: 55 lbs (25 kg) of solid, no-nonsense storage.
  • Includes (5) Beastly Steel Hooks
    You get (2) Standard Hooks, (2) Low-Hanging Hooks (8.7” / 220 mm), and (1) Heavy-Duty Double Hook (9.8” / 250 mm)—each one proudly emblazoned with the RACK-ON ROCK-ON insignia. Built to handle serious gear, these hooks are so tough they’ll earn a nod of respect from the biggest, hairiest Dadsquatch in the back-forty. Weight Capacity: 40 lbs (18 kg) each.
  • We lowered 2 of the hooks to provide more room under the shelf to hang stuff
  • We sourced top-quality nylon spiral drywall anchors for you. Most competitors send those junky small plastic anchors that you end up throwing away.
  • We specified 50mm / 2” long screws for a solid installation thru 5/8” drywall and into the wood stud. Most competitors provide 38mm / 1.5” which is just not good enough.
  • Includes (1) Wilderness-Ready Installation Kit
    Easy to follow, step-by-step instructions in English, French, and Spanish—plus full 1-Year Warranty info to keep you covered. Kit includes (30) Premium 2-inch (50 mm) Black Steel Screws and (30) Heavy-Duty Nylon Spiral Tip Drywall Anchors for rock-solid mounting. We even threw in 2 extra screws and anchors—because we know how it goes some days.

For a limited time only Bonus Gear

RACK-ON™ Ripper Connectors

(2) Large polypropylene hook-and-loop wraps for subduing wild extension cords, ropes and hoses. Hang them where they need to hang with the heavy-duty powder coated black steel carabiner.
Big, burly and super tough.

Retail Value: $9.99 CAD each

Need more? Order a 4-pack here >>

Rack-on Sticker

RACK-ON™ Vehicle Sticker

Weatherproof Vehicle Decal with UV protection and all-terrain 3M adhesive, guaranteed to stick through any storm!
Everyone’s gonna love this sticker.
Slap it on. RACK-ON!

Retail Value: $3.99 CAD each

Buy Now on Amazon.ca

FAQs

Hit the hardware store and pick-up a decent quality stud finder. For personal safety, get the one that tells you where the AC electrical lines are under the wall. Once you’ve used a stud finder, you’ll wonder why you never had one before!

No problem. Stud mounting is not required. Where no stud exists, pre-drill wall anchor holes using 1/4″ (6mm) drill bit. Use a hand screwdriver to turn the spiral drywall anchors into the wall.

If installing onto brick or concrete you will need countersunk 3/16” diameter concrete screws (or #8 or #10 size [M4-M5] screws), a masonry drill bit, and masonry wall anchors (sorry, not included).

Pick a spot on the wall where you want to mount the rack. Pin one corner of the template to the wall. Use a bubble level to level the template and pin the other corners. Centre-punch the hole locations. Remove template.

No. Drive the screws thru the drywall and directly into the studs without pre-drilling holes.

Mark hole locations with mounting template. Pre-drill holes into drywall using a ¼” (6mm) drill bit. Use a hand screwdriver to turn the spiral drywall anchors into the wall.

No. It won’t work. Drive the screws thru the drywall and directly into the studs without pre-drilling holes.

Yes, it is. Borrow a power drill from your neighbour and use a Phillips head PH2 bit.

$ option: Pick a new mounting location.
$$$$ option: Call an electrician to move the wiring. Warning! Don’t risk drilling into electrical hazards!

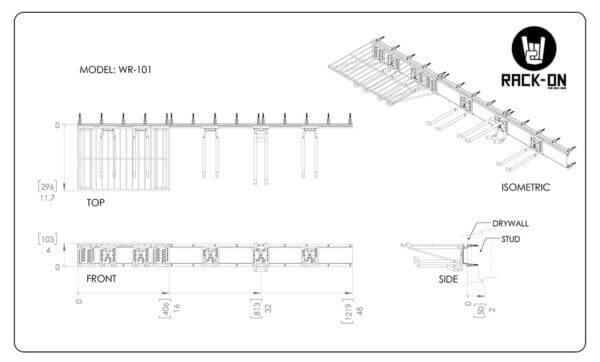

(3) Heavy-Duty Black Powder Coated Steel Mounting Plates
(Length x Height) 406 x 98.5 mm / 16 x 4 inches (1219 mm / 48” total length)
Features over-sized bullet-slot hole pattern designed to align with 16″ on-center wood or metal stud walls for foolproof installation. Install the plates in-series, or locate them independently (modular). Manufacturer Rated Weight Capacity: 75 kg / 165 lbs per plate—strong enough to hold your heaviest gear!

(1) Rugged Black Powder Coated Steel Wire Shelf
(Length x Depth) 406 x 279 mm / 16 x 11 inches
Adjustable positioning. Size perfect for storing Sasquatch-sized ration packs, oversized pet food containers, garden soil bags, road salt, dirt biking helmets, or a banker box full of blurry Bigfoot photos. Manufacturer Rated Weight Capacity: 25 kg / 55 lbs.

(5) Beastly Black Powder Coated Steel Hooks
(2) Standard Hooks + (2) Low-Hanging Hooks (8.7 in / 220 mm length)
(1) Double Hook (9.8 in / 250 mm length)

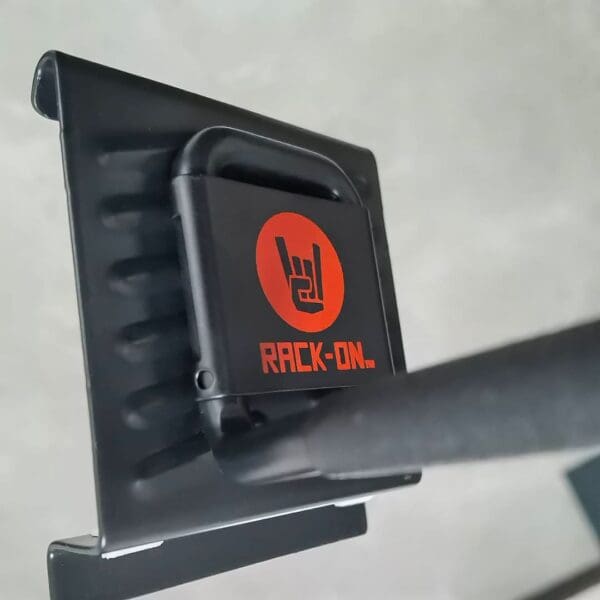

11 mm diameter steel hooks with environmentally certified black rubber coating. Uniquely emblazoned with the trademark RACK-ON™ ROCK-ON insignia. These hooks are super tough, yet soft and gentle on the surface coatings of hung objects. (2) Low-hanging hooks provide more room to hang things under the shelf than other competitors. Manufacturer Rated Weight Capacity: 18 kg / 40 lbs each. Certified free of heavy metals and harmful substances we tested.

(1) Installation Manual + Warranty
A5 Black and White
Step-by-step instructions in English, French, and Spanish + Warranty details to keep you covered.

Screw Hardware
Black Countersunk Phillips (PH2) Head Screws 50 mm / 2″ Length, M4.5mm Coarse Thread
QTY: 30x pcs + 2 Extra just in case. Certified free of heavy metals and harmful substances we tested.

Drywall Mounting Hardware
White Nylon Spiral Drywall Anchors 41 mm / 1-5/8” Length, Suitable for #8 – #10 Screws
QTY: 30x pcs + 2x Extra just in case. Certified free of heavy metals and harmful substances we tested.

Bonus Item: (2) RACK-ON™ RIPPER CONNECTORS
Strap Length: 432 mm / 17”
Strap Width: 38mm / 1.5”
Carabiner: L90*W44 mm / 3.5”L x 1.7”W, Steel Thickness 8 mm / 5/16” Ø. Snap Opening Size 13.2 mm / 33/64”.
(2) Large polypropylene hook-and-loop wraps for subduing wild extension cords, ropes and hoses. Hang them where they need to hang with the heavy-duty powder coated black steel carabiner with large snap opening (will snap-on to ½” Ø). Manufacturer Rated Weight Capacity 25 kg / 55 lbs. Attach the hook and loop straps together for larger circumference jobs.

Bonus Item: (1) RACK-ON™ ROCK-ON VEHICLE STICKER
75×75 mm / 3”x3”
Weatherproof Vehicle Decal with UV protection and all-terrain 3M adhesive, guaranteed to stick through any storm! Everyone’s gonna love this sticker. Slap it on. RACK-ON!

INTERIOR DRYWALL WITH WOOD OR METAL STUD FRAMING
Hardware included
Mounting hardware for interior drywall with wood or metal stud framing is included. Mounting holes align perfectly with 16” on-centre stud framing, however, mounting directly to studs is not required. Haha, get your mind out of the gutter!

INTERIOR CONCRETE, BRICK & MASONRY
Hardware not included
Mounting hardware for concrete, brick and masonry is not included. 3/16” diameter countersunk concrete screws are recommended.

EXTERIOR MOUNTING
Not Recommended
Mounting the racks in open outdoor elements is not recommended. The rack and components are made of steel. The black powder coating will provide some temporary protection, but eventually, rust will appear. If mounting outside, mount it in a sheltered location. Seriously! Get your mind out the gutter, geez!

AR is not supported on this device


RACK-ON Manual Cover for Revelation Rack

Click to View/Download PDF



SGS test for harmful substances results for RACK-ON wall anchorsPASS – View test results (PDF)
Heavy Metals – ASTM F963-23 including Mercury (Hg), Chromium (Cr), Cadmium (Cd), Barium (Ba), Arsenic (As), Lead (Pb), Antimony (Sb), Selenium (Se); California Prop 65 including Phthalates (10P), Lead (Pb), Bisphenol-A (BPA); EU 220/784 – EU2019/1021 Annex1 (PFOA), its salts and related substances, and EU2010/757 – EU2019/1021 (PFOS) its salts and derivatives.

SGS test results for harmful substances for RACK-ON screwsPASS – View test results (PDF)
Heavy Metals – ASTM F963-23 including Mercury (Hg), Chromium (Cr), Cadmium (Cd), Barium (Ba), Arsenic (As), Lead (Pb), Antimony (Sb), Selenium (Se); California Prop 65 – Lead (Pb); EU 220/784 – EU2019/1021 Annex1 (PFOA), its salts and related substances, and EU2010/757 – EU2019/1021 (PFOS) its salts and derivatives.

SGS test for harmful substances results for RACK-ON hook rubber coatingPASS – View test results (PDF)
Heavy Metals – ASTM F963-23 including Mercury (Hg), Chromium (Cr), Cadmium (Cd), Barium (Ba), Arsenic (As), Lead (Pb), Antimony (Sb), Selenium (Se); California Prop 65 including Phthalates (10P), Lead (Pb), Bisphenol-A (BPA); EU 220/784 – EU2019/1021 Annex1 (PFOA), its salts and related substances, and EU2010/757 – EU2019/1021 (PFOS) its salts and derivatives.

SGS test for harmful substances results for RACK-ON hook rubber coatingPASS – View test results (PDF)
EU RoHS Directive 2011/65/EU Annex II amending Directive (EU) 2015/863 – Lead, Mercury, Cadmium, Hexavalent Chromium, Polybrominated Biphenyls (PBBs), Polybrominated Diphenyl Ethers (PBDEs), Dibutyl Phthalate (DBP), Benzyl Butyl Phthalate (BBP), Di(2-ethylhexyl) Phthalate (DEHP) and Diisobutyl Phthalate (DIBP).

Hit the hardware store and pick-up a decent quality stud finder. For personal safety, get the one that tells you where the AC electrical lines are under the wall. Once you’ve used a stud finder, you’ll wonder why you never had one before!

No problem. Stud mounting is not required. Where no stud exists, pre-drill wall anchor holes using 1/4″ (6mm) drill bit. Use a hand screwdriver to turn the spiral drywall anchors into the wall.

If installing onto brick or concrete you will need countersunk 3/16” diameter concrete screws (or #8 or #10 size [M4-M5] screws), a masonry drill bit, and masonry wall anchors (sorry, not included).

No. Drive the screws thru the drywall and directly into the studs without pre-drilling holes.

Mark hole centre locations using the mounting plate as a template. Use a stud finder to confirm there is no stud under the hole location. Pre-drill holes into drywall using a ¼” (6mm) drill bit. Use a hand screwdriver to turn the spiral drywall anchors into the wall.

No. It won’t work. Drive the screws thru the drywall and directly into the studs without pre-drilling holes.

Yes, it is. Borrow a power drill from your neighbour and use a Phillips head PH2 bit.

$ option: Pick a new mounting location.
$$$$ option: Call an electrician to move the wiring. Warning! Don’t risk drilling into electrical hazards!
